Big Daddy Large Overhead Lift

BIG DADDY Oversized Attic Lifts

Easily lift storage items into your attic conveniently and reliably with this large attic Lift appropriately named "Big Daddy"
This large storage lift is a motorized lift system that easily and safely lifts your storage items to the attic or lowers them down to the floor level. It eliminates the time consuming, dangerous task of lifting or pushing items up and down your pull down attic stairway.
The design of this attic lift turns a difficult task into a simple and economical solution for all of your storage needs.
Commercial Applications:
Our oversized 'Big Daddy' storage lift provides materials handling benefits like a platform lift or freight elevator. Move items from one floor to the other or leave in the storage bin to temporarily move out of the way. It requires a separate stairway to provide human access.
Features of the Cynergy Big Daddy Storage Lift:
• Weight capacity – 500 lbs
• Standard lift is designed for ceiling heights up to 10ft (other heights are available for special order)  The maximum ceiling height we can service for this lift is 16'
• Rigorously tested to provide years of trouble-free operation
• Once installed, the attic lift is not visible from the floor
• Unit requires a 110v / 30 amp dedicated circuit.
Easy to install
The Big Daddy Storage Lift can be easily installed by any carpenter and electrician that you prefer. And once it is installed, you can count on years of trouble-free operation.
NOTE: This lift requires careful consideration of the structure it is going into and the structure’s ability to support this lift and weight. If you are in question, we recommend you consult a structural engineer before installing this lift. PRICE OF UNIT: $3,195.00 + $600 Shipping to lower 48.  Common Carrier Shipping.
Rough In Opening Required: 82″ x 46 1/2″ Unit Weight: 317 lbs. .  The carrier decking is finished 3/8″ plywood measuring 44” x 68 7/8”.  The ceiling cover panel is ¼” thick finished plywood and measures 48” x 83.5”.  Both are supplied by homeowner or installer.  Installation generally takes about 1 day for 2 people after the area is framed out. When ready to order, we need to know:  1.  Distance from the FLOOR to CEILING.  2.  Thickness of Attic Floor Joist.  This unit comes with 1 operating switch that can mount in the wall downstairs. Loading ramp shown below available as option.  $395 + Shipping

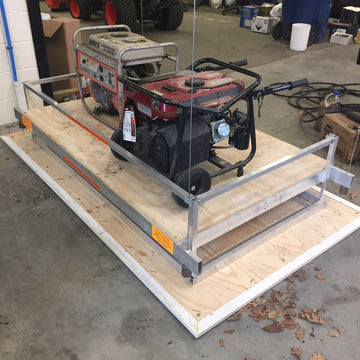

Large Attic Lift

Oversized Attic Lift

overhead lift

Attic Lift w/ Ramp

Mezzanine Lift

Mezzanine Type Lift

Rough In Opening

Rough Opening 82”x 46 ½”

Attic View of Lift Install

Attic View of lift install.  NOTE: The two stanchion supports shown above mount to the attic floor.  Also notice the motor on the corner that takes up additional space,  Consult the installation manual for measure tolerances or call us at (405) 516 2412.
